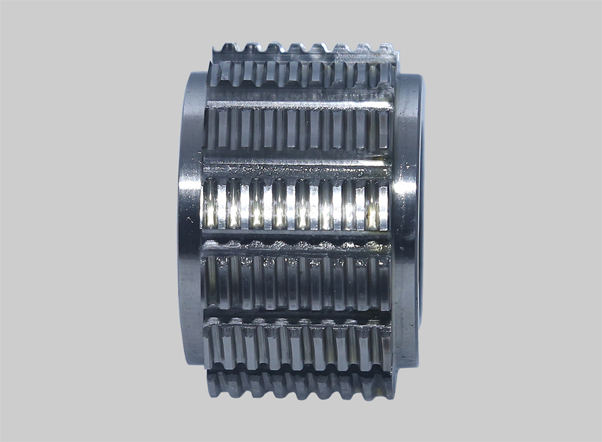

Timing Pulley Hobs
Timing Pulley Hobs
We are a Manufacturer of Timing Pulley Hobs in high quality as per ANSI, BS, IS, or any other standards or with non-standard forms. These hobs are offered with the ground or unground profiles and topping or non-topping designs.
Timing Pulley Hobs are made to cut different types of Timing Pulleys. The Hobs are available in two types Hole Type and Shank Type. These timing pulley hobs are designed to produce fine finishing and optimal results. We deliver products that are made up of qualitative materials.
- Material: M2/S590/ASP2052/ S390/ S290/ ASP 2030 / M35
- Involute Spline Standards: BS4548, DIN7721, ISO5294, ISO5296, ISO17396
- Accuracy : AAA, AA and A as per DIN 3968
- Supplied with all types of PVD Coatings.
- HTD
- Involute profiles like ‘T’ & ‘S’
- Linear pulleys like MXL, XL, L, H, XH, XXH
