Gear Hobs

Gear Hobs

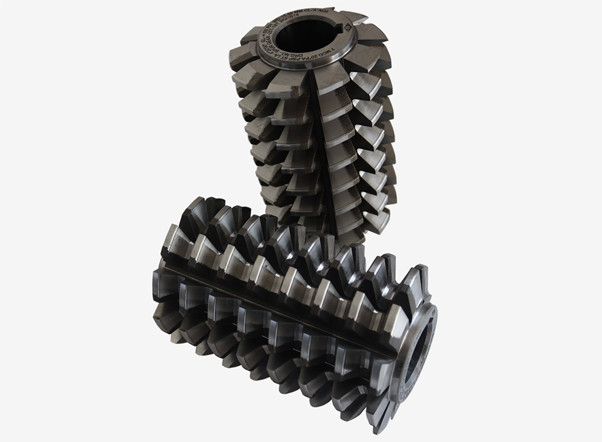

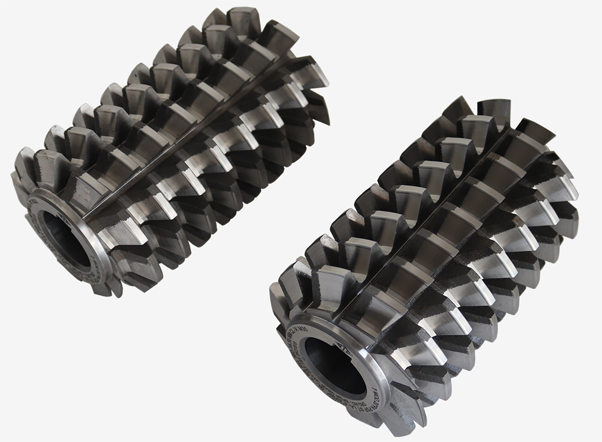

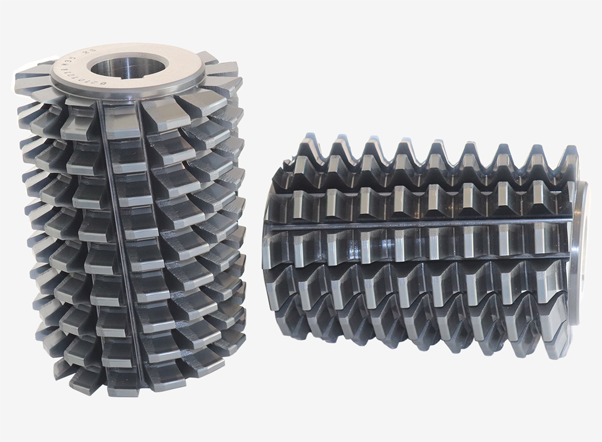

Gear Hob

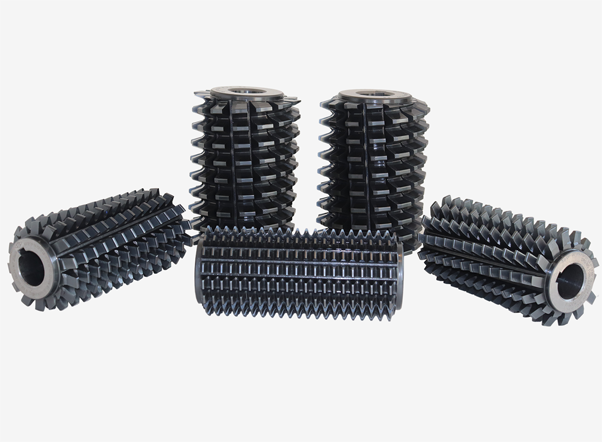

STC is a Manufacturer of Gear Hobs made with maximum accuracy and proper finishing. These Gear Hobs can be manufactured in Bore and Shank Types. Besides Gear Hobs, we also supply custom gear Hobs as per customer drawings.

These are used to generate gear tooth profiles in any material. Gear Hob Cutters are available in all kinds of PVD coatings as per our customers’ requirements. The Hobs are produced in bore or shank type in single or multi-threads.

    TECHNICAL SPECIFICATIONS
  • Materials: S390/ASP2052/ASP2030/S290/ASP2060/S590/M35/M2
  • Types: Bore & Shank
  • Maximum Diameter: 250mm
  • Maximum Length: 250mm
  • Module Range: 0.2 to 25 Module
  • Accuracy class: Up to AAA as per DIN3968
  • PVD Coatings: TiN, Alcrona Pro & Altensa
  • Standards: DIN 3972, DIN 867, DIN 8000, IS8731, ISO 53, GOST 6637, GOST 9324, GOST 13755
  • Note: Special features like Topping, Semi Topping, Protuberance, Pre-Grinding, Pre-Shaving etc. can also be provided as per Customer’s requirement.
